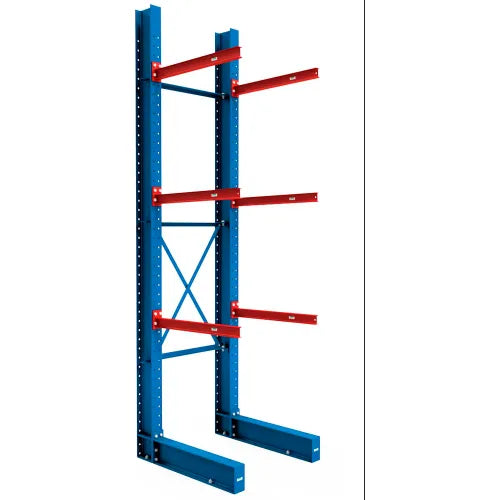

Global Industrial™ Single Sided I-Beam Cantilever Rack Starter, 192"H Upright & 48"W Brace Kit
Global Industrial™ Single Sided I-Beam Cantilever Rack Starter, 192"H Upright & 48"W Brace Kit
Couldn't load pickup availability
I-Beam single-sided cantilever rack saves horizontal space normally lost to rack structure, reduces fork truck damage and allows for faster load and unload times. They're constructed of structural steel with a 50,000 PSI minimum yield. Arms adjust vertically in 4" increments. With a heavy arm connector plate and bolted column-to-base connections, they're a rugged addition to your storage line up. The top arm can be no closer to the top column than the depth of the column. The top arm needs to be at least 8" below the top of the column (so that the top arm has the necessary capacity). Capacity based on 36" arm spacing. Blue Uprights with Orange Arms (straight arms). Anchors and mounting hardware included. Made in the USA. Starter kit.
Weights & Dimensions:
| Width | Depth | Height | Weight Capacity | Weight | Arm Length |
|---|---|---|---|---|---|
| 48 in | 58 in | 192 in | 18530 lbs | 1431 lbs | 48 in |
Product Details:
| Assembly Required | Yes |
|---|---|
| Type | Starter Unit |
| Number of Arms | 8 |
| Color | Blue |
| Series | I-Beam |
| Arm Capacity | 2600 lbs |
| Number of Sides | 1 |
| Country of Origin | United States |
| Material | Steel |
| Arm Type | Straight Arm |
| Package Quantity | 1 |
| Manufacturers Part Number | B2366080 |
| Brand | Global Industrial |
