Interlake Mecalux Pre Configured Pallet Rack Starter Pack
Interlake Mecalux Pre Configured Pallet Rack Starter Pack

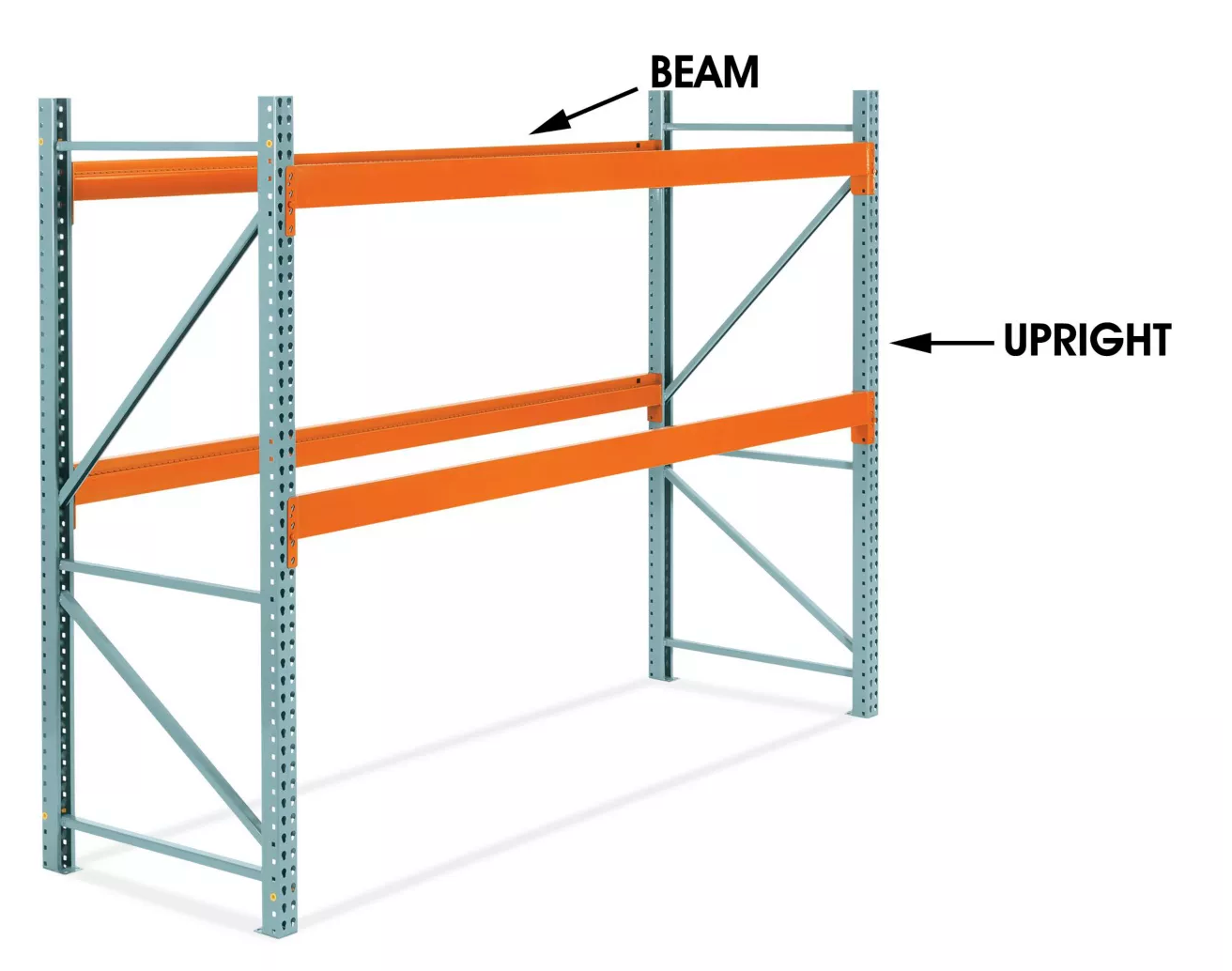

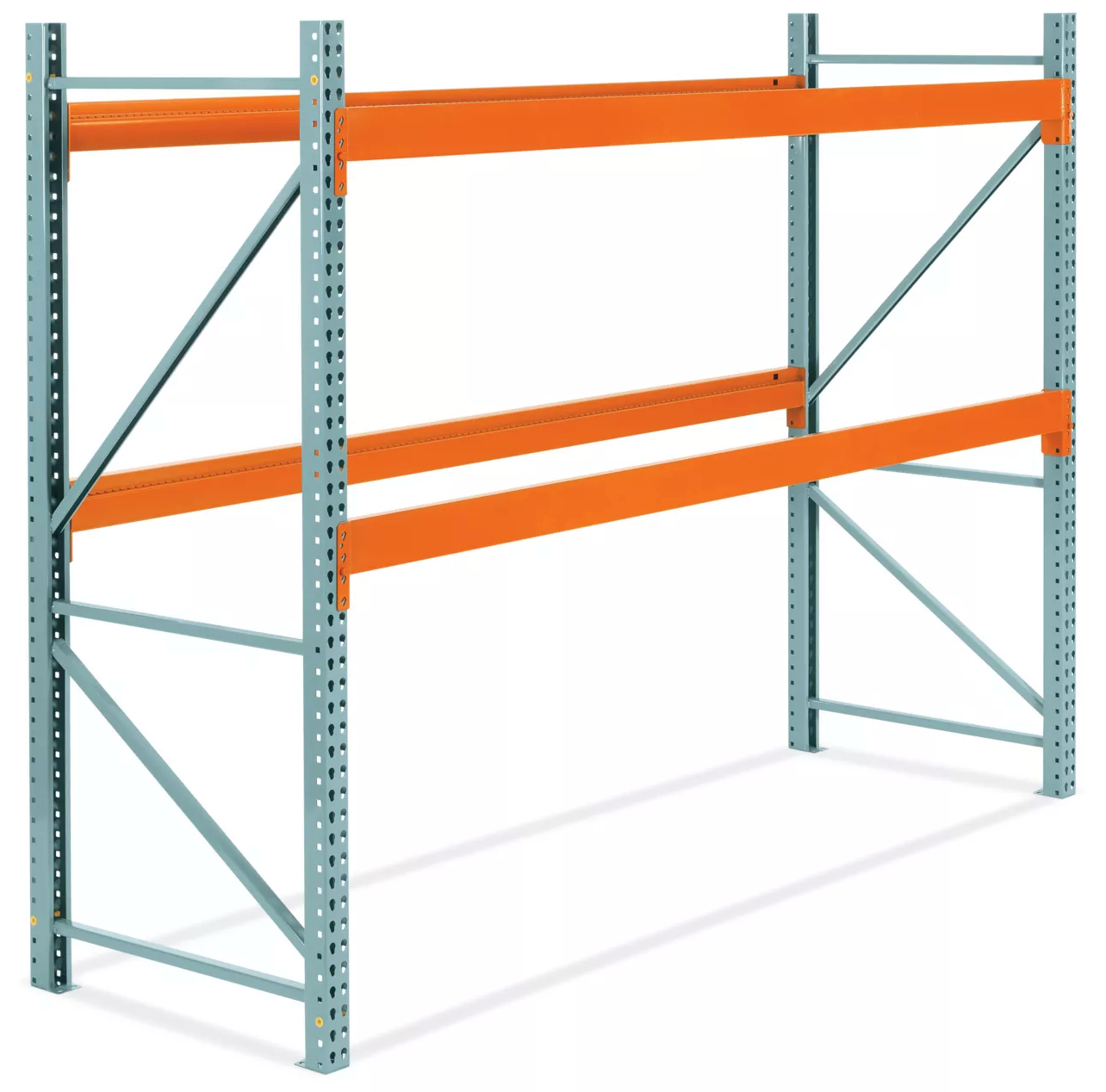

The Interlake Mecalux welded selective welded pallet rack starter units provides versatility for warehouses that have wide variety of product types. An easy to order and pre-configured starter unit include two upright frames and two beam shelf levels.
Features:
- Pallet rack upright frames and pallet beams are manufactured from high-strength steel and other quality raw materials.
- Tear drop perforations on the face of the upright column allow shelf adjustment at 2" increments. Pallet rack upright frames have a green powder coat finish. A powder coat finish provides an even durable coat on the pallet rack upright frames. Standard, pre-punched footplates offer easy anchoring.
- Orange pallet rack beams offer a piston lock frame-to-beam connection seats and locks automatically, and protects against accidental beam displacement.
- The piston lock system is damage and tamper proof, preventing disengagement during use. The locking system creates the industry's most secure connection, while maximizing total capacity.
- The 1-5/8' step within the orange pallet rack beams accommodates wire decking and other accessories.
- Extending the length of your pallet rack system is simple by ordering Interlake Mecalux Welded Pallet Rack Add-On units.
- Easy and simple assembly.
- Interchangeable with Global, Wireway/Husky, Unarco, Steel King, USP, Speed Rack and Invincible.
- Capacity based on 36" beam shelf spacing.
• • Interlake Mecalux welded pallet rack tear drop starter units are Rack Manufacturers Institute, Inc (RMI) certified.
Product Details Per Variant:
Width |
Depth |
Height |
Shelf Capacity |
Weight Capacity |
Beam Height |
96 in |
36 in |
96 in |
4165 lbs |
27600 lbs |
3-21/32 in |
96 in |
42 in |
120 in |
4165 lbs |
27600 lbs |
3-21/32 in |
96 in |
48 in |
96 in |
5340 lbs |
27600 lbs |
4 in |
96 in |
48 in |
120 in |
5340 lbs |
27600 lbs |
4 in |
96 in |
48 in |
144 in |
5340 lbs |
27600 lbs |
4 in |
96 in |
48 in |
144 in |
4165 lbs |
27600 lbs |
3-21/32 in |
108 in |
42 in |
96 in |
6125 lbs |
27600 lbs |
5 in |
108 in |
42 in |
120 in |
6125 lbs |
27600 lbs |
5 in |
108 in |
42 in |
144 in |
6125 lbs |
27600 lbs |
5 in |
120 in |
42 in |
96 in |
5575 lbs |
27600 lbs |
5 in |
120 in |
42 in |
120 in |
5575 lbs |
27600 lbs |
5 in |
