Interlake Mecalux Teardrop Bolted Pallet Rack, Starter Kit
Interlake Mecalux Teardrop Bolted Pallet Rack, Starter Kit

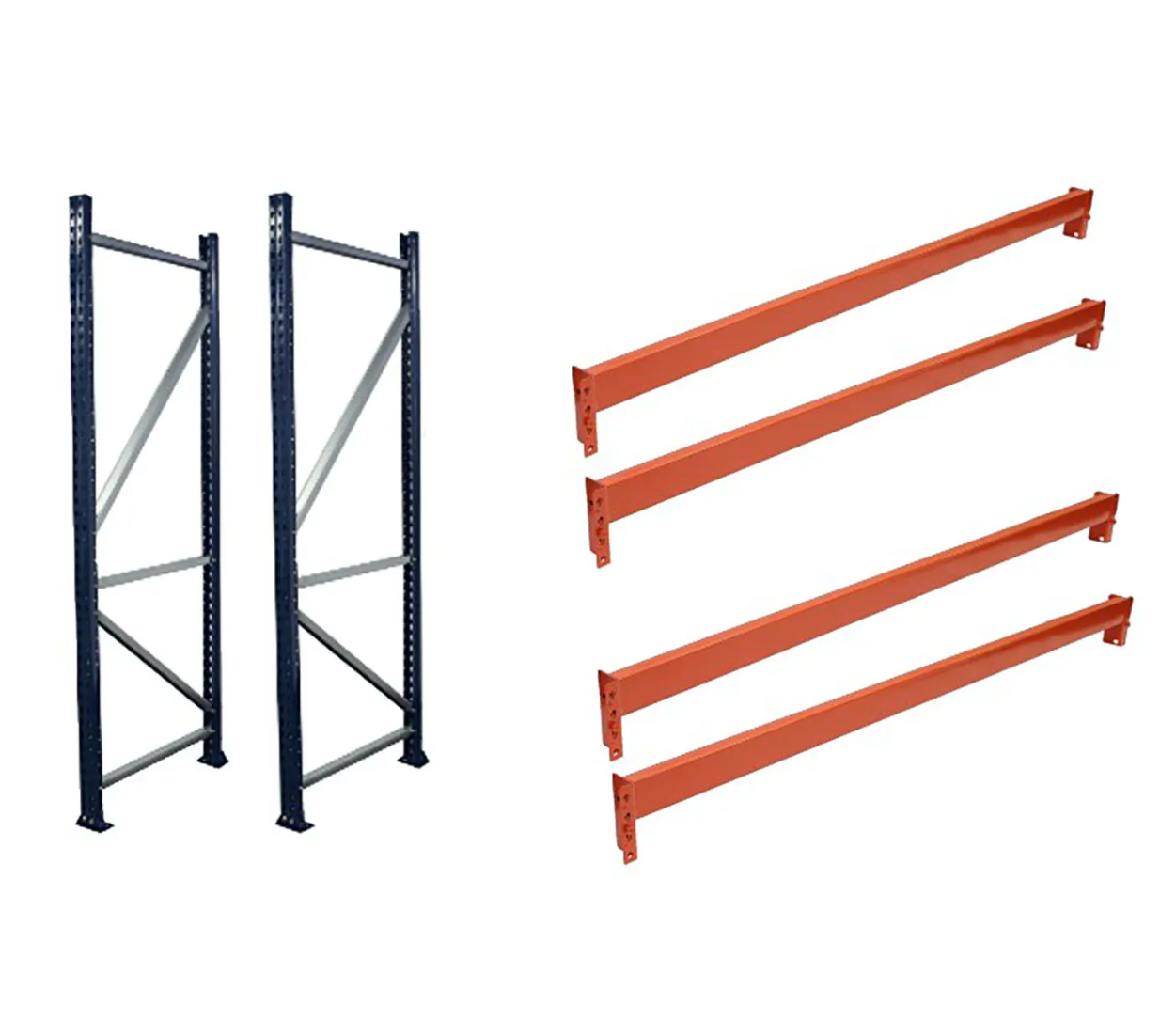

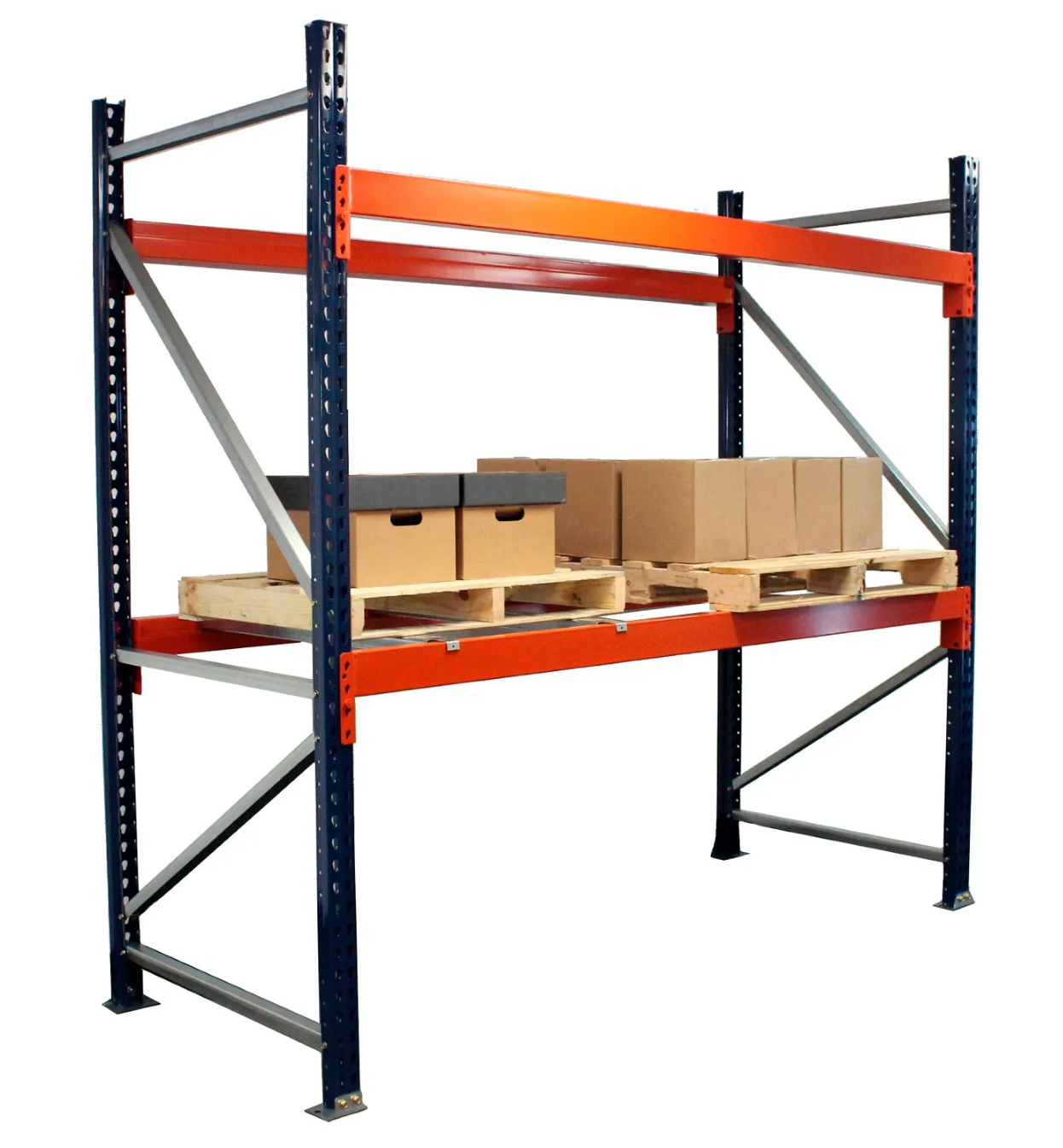

The Interlake Mecalux assembled selective bolted pallet starter units provide versatility for warehouses that have wide variety of product types. An easy to order and pre-configured starter units include two upright frame and two beam shelf levels.
Features:

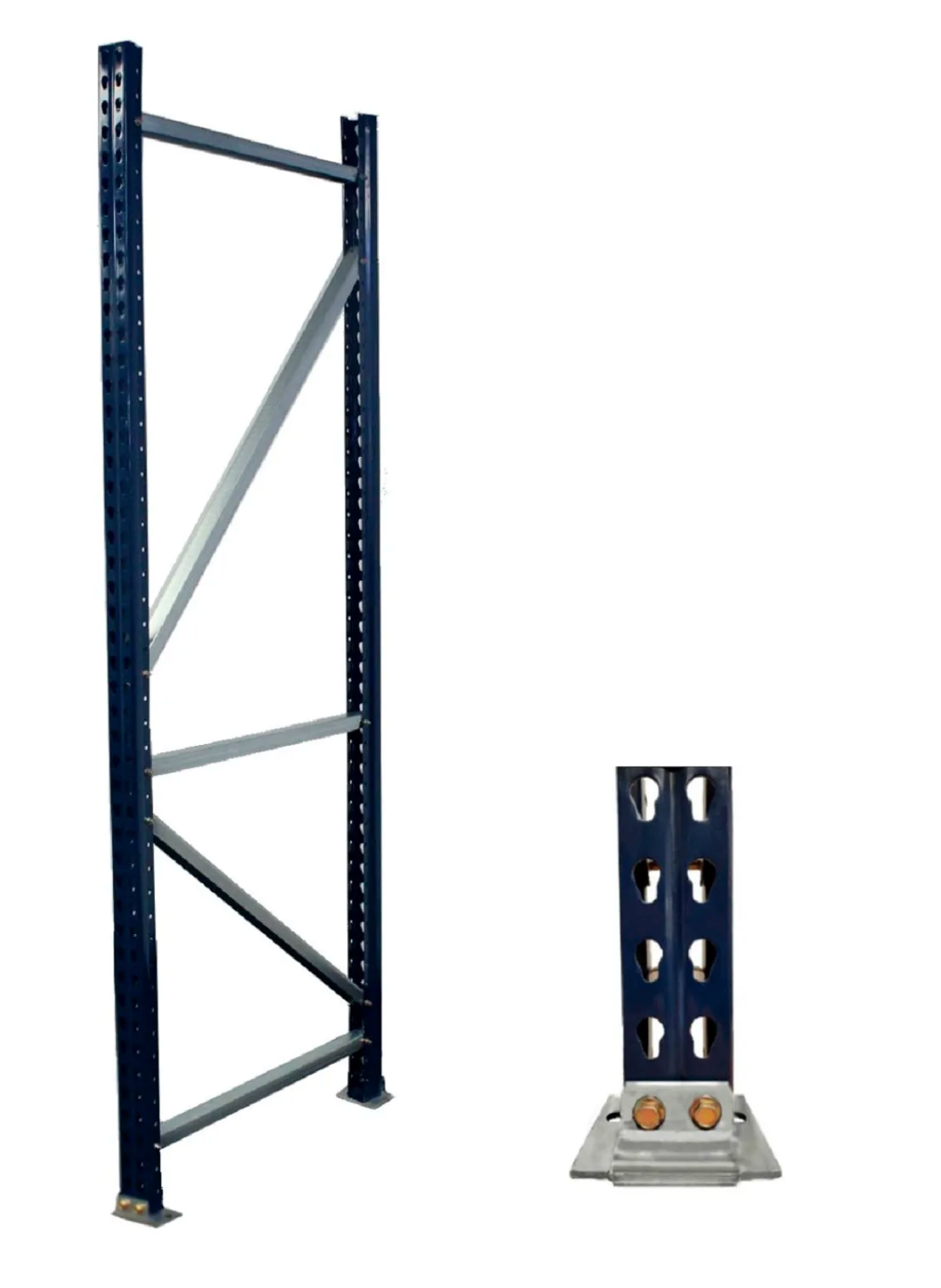

- Uprights and beams are manufactured from high-strength steel and other quality raw materials. Tear drop perforations on the face of the upright column allow shelf adjustment at 2" increments. Standard, pre-punched footplates offer easy anchoring
- Interlake Mecalux assembled bolted pallet rack add-on unit partakes in a cataphoresis paint process based on electro-chemical technology
- This process provides many advantages: Anti-corrosion protection, Even layer thickness everywhere on items, Great protection against every day wear and tear of warehouse environment

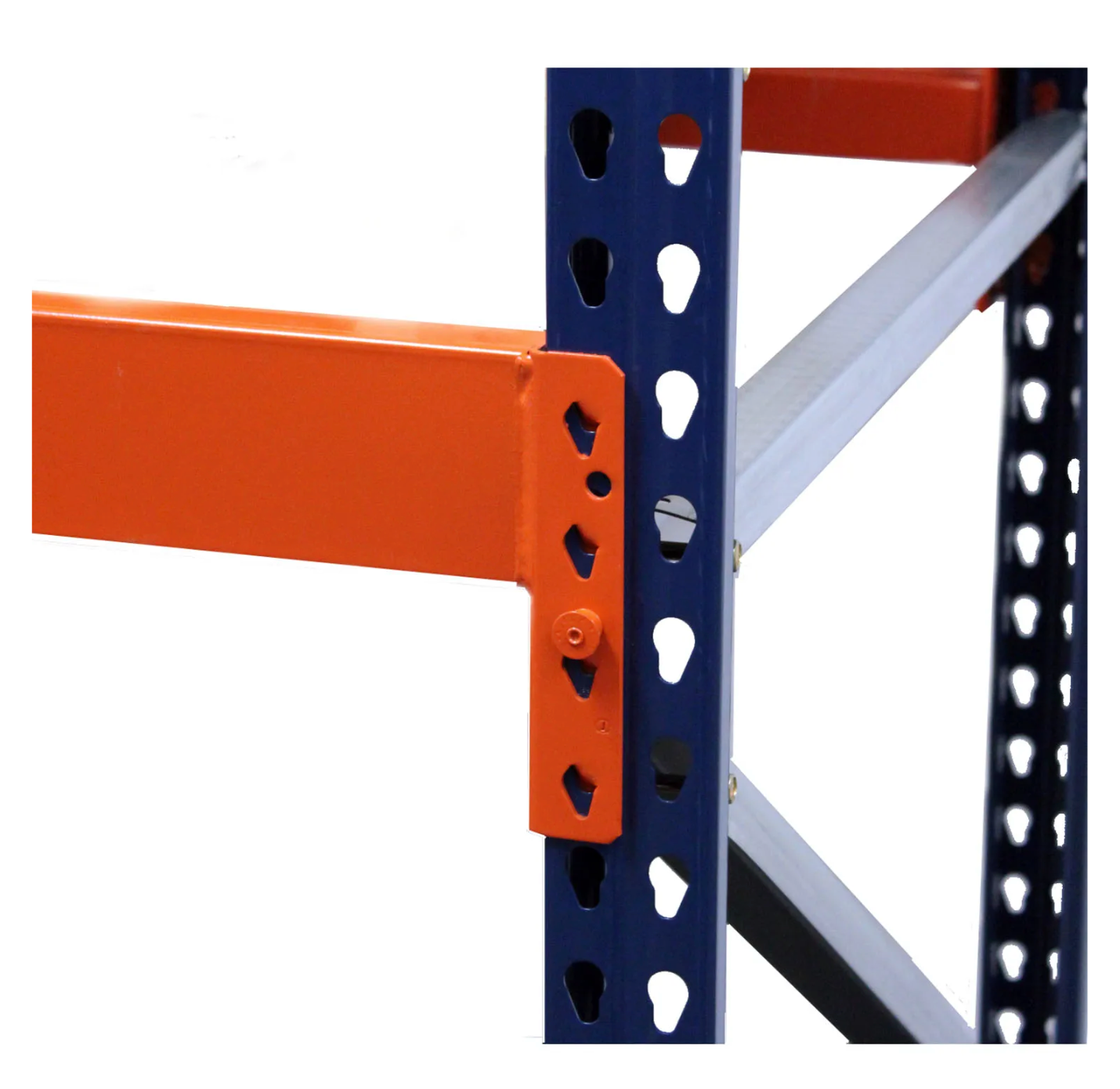

- Orange pallet rack beams offer a piston lock frame-to-beam connection seats and locks automatically, and protects against accidental beam displacement
- The piston lock system is damage and tamper proof, preventing disengagement during use.
- The 1 - 5/8" step within the orange pallet rack beams accommodates wire decking and other accessories to be added
- Easy and simple assembly.
- Interlake Mecalux bolted pallet rack tear drop starter units are Rack Manufacturers Institute, Inc (RMI) certified.
Product Details Per Variant:
Width |
Depth |
Height |
Shelf Capacity |
Weight Capacity |
Beam Height |
96 in |
36 in |
96 in |
5370 lbs |
24571 lbs |
4 in |
96 in |
36 in |
120 in |
5370 lbs |
24571 lbs |
4 in |
96 in |
42 in |
96 in |
5370 lbs |
24571 lbs |
4 in |
96 in |
48 in |
96 in |
5370 lbs |
24571 lbs |
4 in |
108 in |
36 in |
96 in |
5380 lbs |
24571 lbs |
4-1/2 in |
108 in |
36 in |
120 in |
5380 lbs |
24571 lbs |
4-1/2 in |
108 in |
42 in |
96 in |
5380 lbs |
24571 lbs |
4-1/2 in |
108 in |
42 in |
120 in |
5380 lbs |
24571 lbs |
4-1/2 in |
108 in |
42 in |
144 in |
5380 lbs |
24571 lbs |
4-1/2 in |
108 in |
48 in |
96 in |
5380 lbs |
24571 lbs |
4-1/2 in |
108 in |
48 in |
120 in |
5380 lbs |
24571 lbs |
4-1/2 in |
108 in |
48 in |
144 in |
5380 lbs |
24571 lbs |
4-1/2 in |
144 in |
36 in |
96 in |
6250 lbs |
24571 lbs |
5-7/8 in |
144 in |
36 in |
120 in |
6250 lbs |
24571 lbs |
5-7/8 in |
144 in |
42 in |
96 in |
6250 lbs |
24571 lbs |
5-7/8 in |
144 in |
42 in |
120 in |
6250 lbs |
24571 lbs |
5-7/8 in |
144 in |
48 in |
96 in |
6250 lbs |
24571 lbs |
5-7/8 in |
144 in |
48 in |
120 in |
6250 lbs |
24571 lbs |
5-7/8 in |
144 in |
48 in |
144 in |
6250 lbs |
24571 lbs |
5-7/8 in |
